◆ Made by solid high performance High Speed Steel
◆ Special Multi-Cut design help to remove chips and reduce cutting resistance

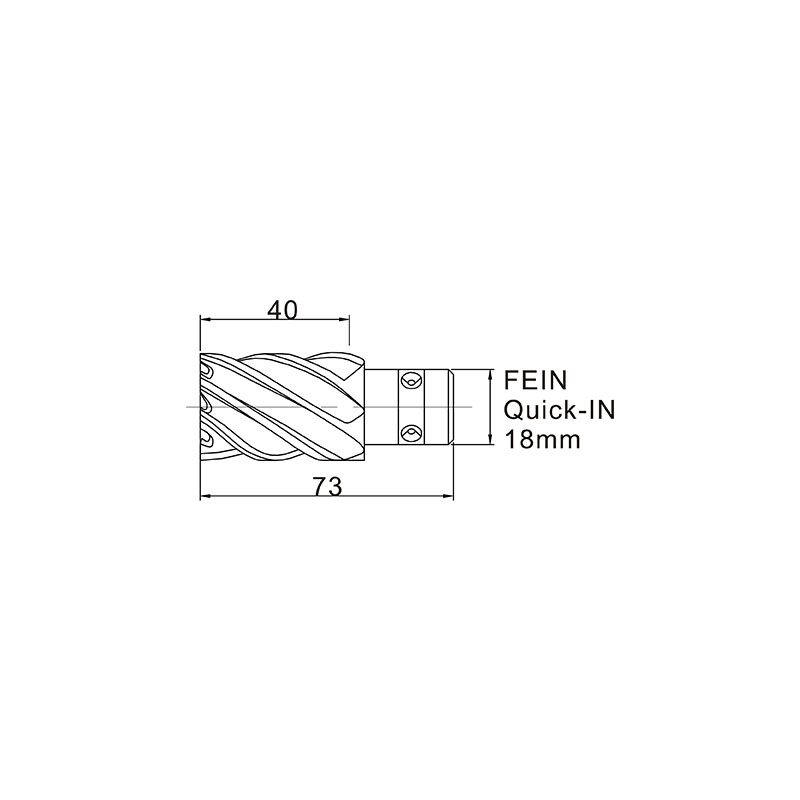

◆ Ф18mm FEIN Quick-IN Shank
◆ Special for FEIN magnetic drills

◆ Used on the Magnet-Seat Drilling Machines and Press, Milling machine also available
◆ Best chioce for annular drilling on steel plate materials and large workpieces
◆ Special multi-Cut design help to remove chips and reduce cutting resistance
◆ With center pin for piloting and ejecting the cutted piece
◆ Much higher in cutting efficient and better cutting result than the traditional Twist Drills
◆ Suitable for Steel Structure Projects, Railway-Traffic, Bridging, Shipbuilding, Aviation and Spaceflight Industry

· Speed Choice: Refer to recommended cutting speeds
· Feed recommendation: 0.06-0.18mm/cycle. Feed is the key point for hole cutting. Different feed forms different shaped chips, which determine the performance of chips removal
· During the beginning and temination of hole cutting, decress feed 1/3 can reduce the damage of cutter
· Sufficien coolant supply can increase the smoothness of holes and quantities of holes to be cut
· Some materials like cast iron/copper occur lots of powder when cutting, Compressed air is recommended for cooling instead og coolant
· Remove the chips twining around the cutter promptly, which is the better way for chip removal. Better chips removal is quite important
· Withdraw the cutter when it still rotates after hole drilling
· Clear the chips after hole drilling
· For multi-layer work pieces, clear the chips after every layer drilling
· When the wear width of the cutting edges reaches 0.4mm, cutter should be replaced
