Tec-Spiral

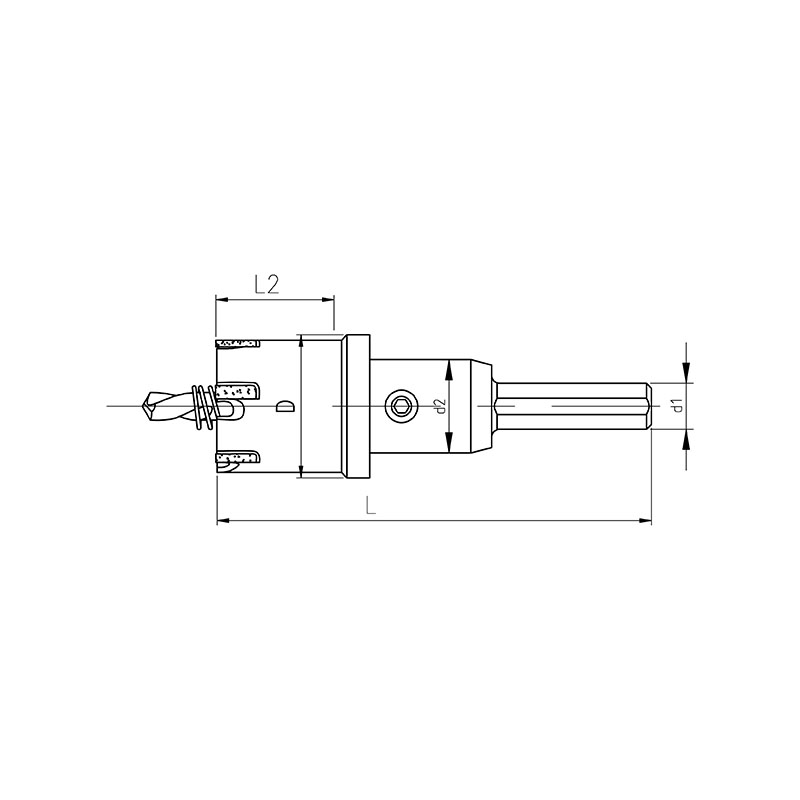

T.C.T Hole Saw for Thin Plate Material

◆ Carbide tipped cutting edge welded to the tough alloy steel body
◆ Special Multi-Cut design(3-ply)help to remove chips and reduce cutting resistance
◆ High cutting speed, High wear resistance and considerably longer tool life
◆ Ideal for high alloy and stainless steels, non-ferrous and light metals and reinforced fabrics
◆ Hole cutter and shank in one piece
◆ Work with portable electric or pneumatic tools, vertical drill machines etc.
◆ Effective length: 11mm
◆ Equipped with Ф6mm HSS Pilot Drill and Ejector Spring for piloting and removing the cutted piece.

Variants

Cutter Dia Metric

Cutting Depth

Description
Advantages
Applications

◆ Always wear safety glasses
◆ Keep hands, hair and loose clothing away from all rotating tools
◆ Use oil or other coolants on most metal work pieces, except cast iron
◆ Hold the saw firmly and drill perpendicular to the work surface
◆ Apply sufficient pressure to enable the saw to cut freely. Clear chips away from area frequently
◆ Operate the saw at the recommended speeds for the material being cut and the diameter of the saw. Never exceed the recommended operating speed
◆ Avoid excessive heat generation on the cutting surface

· Applicable for pipes and sheets such as wood, plastic, steel, cast iron, non-ferrous and light metals
· Work with portable electric or pneumatic tools, vertical drill machines, lathe, boring/milling machines etc.
